The whole project on one page: what the product is, who uses it, every user story built or planned, the flows F00–F07, the gap against the tool Casa uses today, open questions and how to try it.
/quote/:token link for family or an agent's clients.| Role | Who | What they can do today | Priced by |
|---|---|---|---|
| Guest | Individual traveller, anonymous or with an account | Fill a trip, edit on Result, Save, get a public link. With an account, send a reservation for their own trip | Retail (guest service key) |
| Agent | Travel agent, verified by the front desk in Odoo | As guest, plus net rates, the FOC 5+1 column, links that need the viewer to sign in, the Agent View tab | Agent rate card from their own api-key |
| Instructor | Dive instructor bringing a group | As agent, without the Agent View tab | Instructor rate card |
| Staff | Casa front desk, dive centre, kitchen, managers | Choose the guest type when quoting for someone, see every trip in the Ops Sheet, print daily sheets, change Settings | Staff key (cost and margin wait for a real key) |
Trip workspace tabs by role

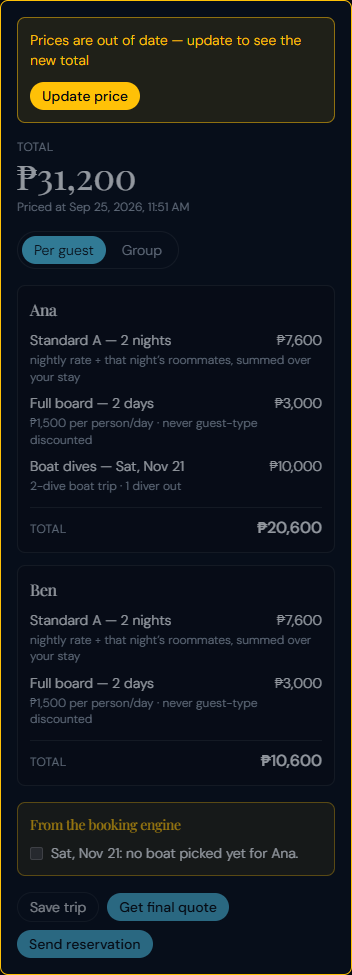

api-key, not from the payload.compute on Plan my trip and Update price, and booking/submit exactly once per quote.System architecture
Phases in delivery order
| Phase | Delivers | Status | Waiting on |
|---|---|---|---|
| P0 | Fixture mode, the api-key header, local Supabase, Vercel config, test:record | done | Linking the Vercel project (lead) |
| P1 | EN/中文 form in the Casa brand, Save as versions, /quote/:token links, My quotes, print | done · fixture | Real keys to compare numbers |
| P3 | Register, sign in, forgot password through Odoo; role from the key; gated links; Agent view | done | QA agent and instructor accounts verified 25 Sep; staff account pending from Odoo |
| P4 | Flow A: form, Plan my trip, Result; Ops Sheet; Settings; day theme | done · fixture | Real boats, drag-and-drop, tanks and DMs |
| P4b | Seven rules block impossible trips before pricing; guest type follows the session role | done | Q-009..Q-012 |
| P2 | Send reservation, Reserve, Booking; one Odoo submit per quote | done in fixture | Live stays closed until Odoo allows it and ODOO_SUBMIT_ENABLED=1 is set |
| P5 | Chat, email, WhatsApp → Trip → quote link | parked | Contract for the AI team is ready (docs/integration/schema.md) |
Each story reads "As <role>, I want … so that …", with acceptance criteria, the flows it relies on and screenshots. Built: works end to end. Fixture: works on sample data, waiting for real Odoo. Planned: not built. Screenshots are of the app running locally in fixture mode, anonymous flow only.
Epic: a stranger with no guidance gets a price for their trip in two screens.

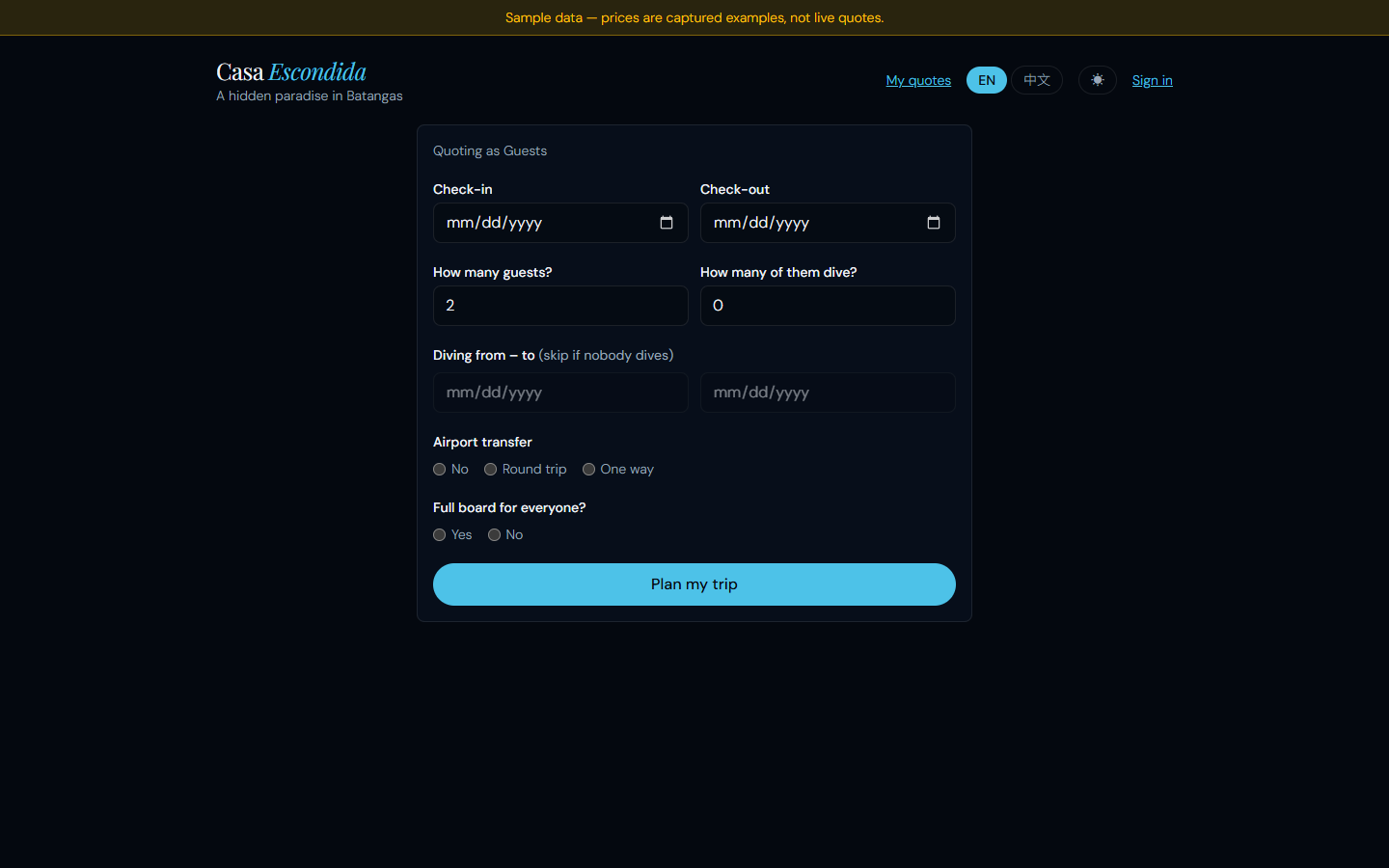

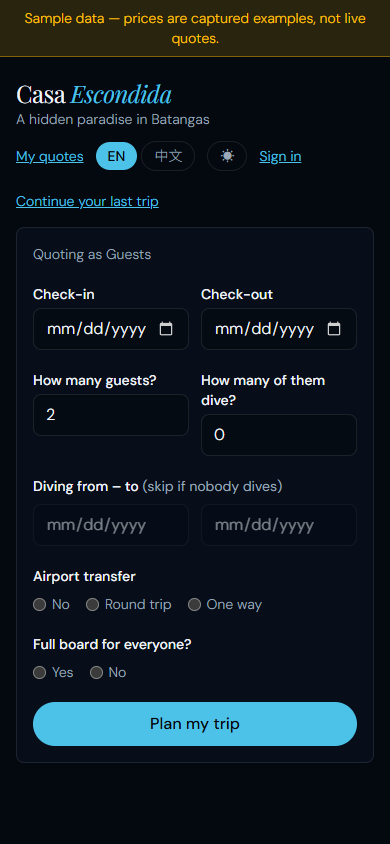

As an individual guest, I want to answer seven questions about my trip without an account, so that I quickly know what it costs.
/ is only a form: stay dates, guests, divers, dive from–to, airport transfer, full board. No numbers at all.

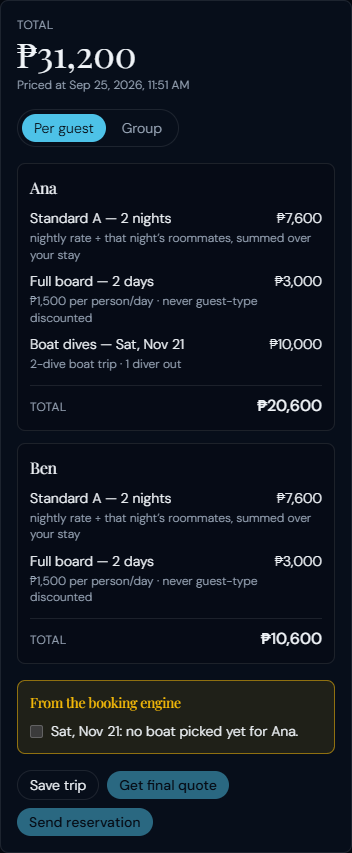

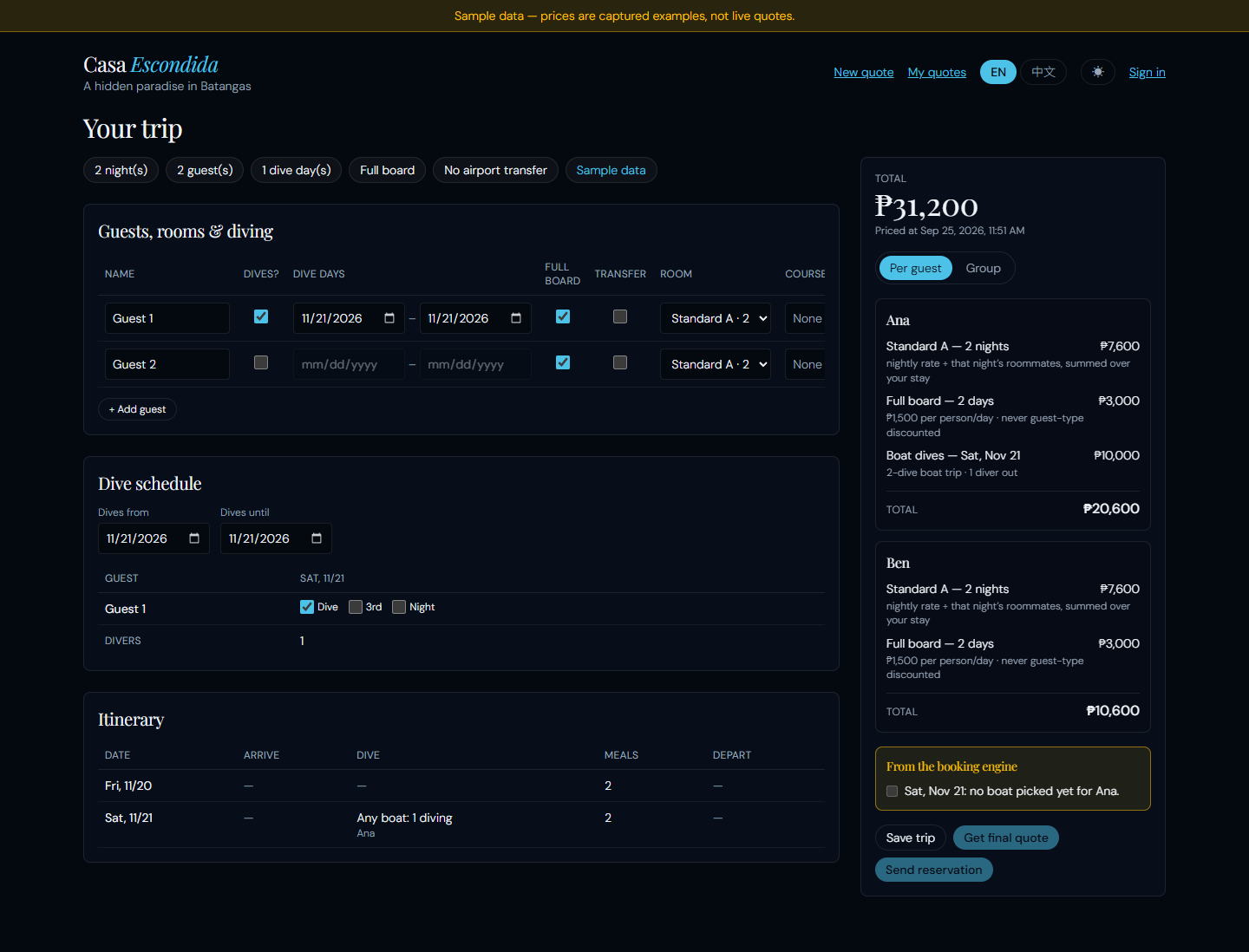

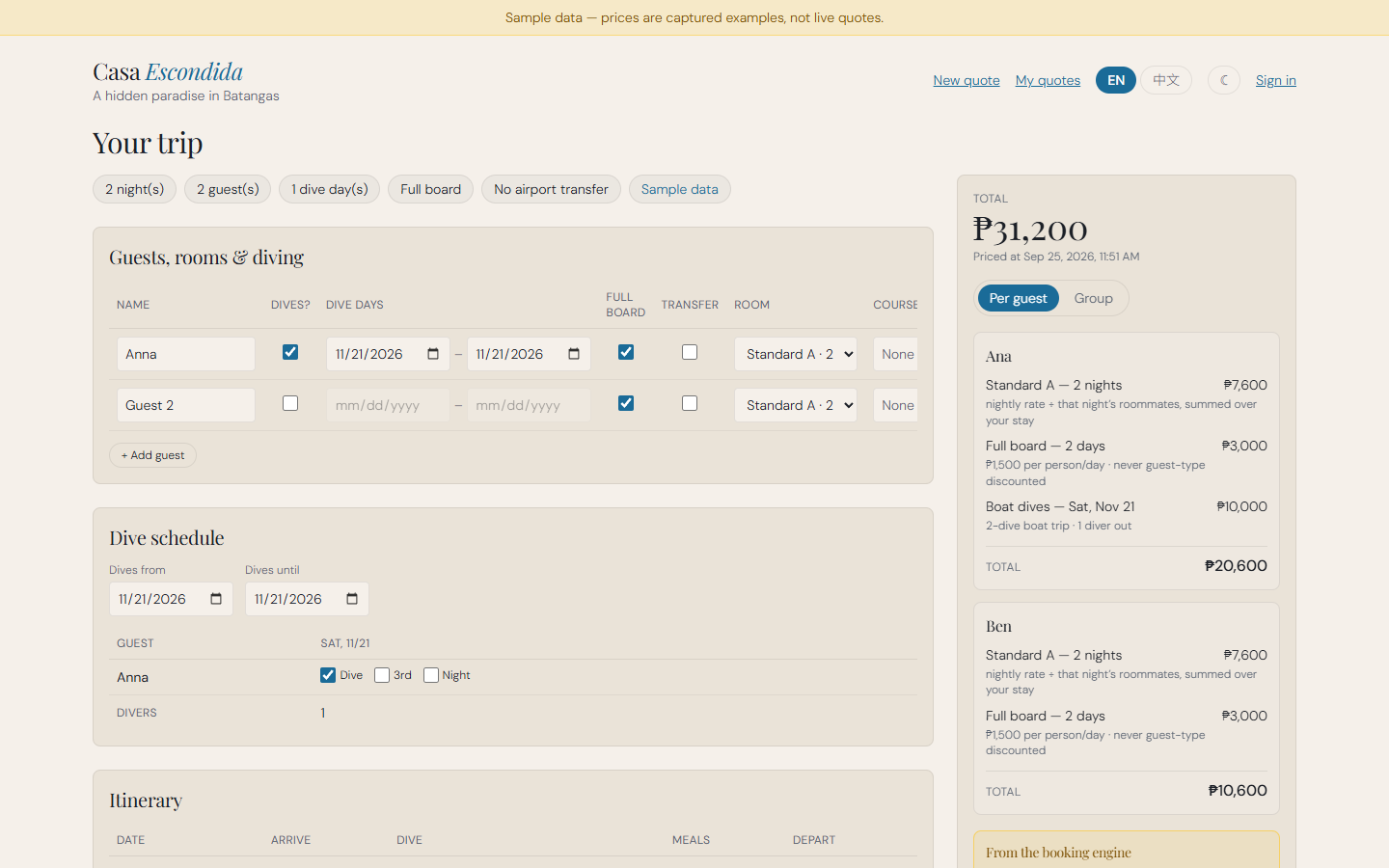

As an individual guest, I want Plan my trip to open a priced Result page straight away, so that I do not click through several steps.
POST /api/estimates; /trip/:id opens already priced.Relies on: F05 D1, D2, F03 D2

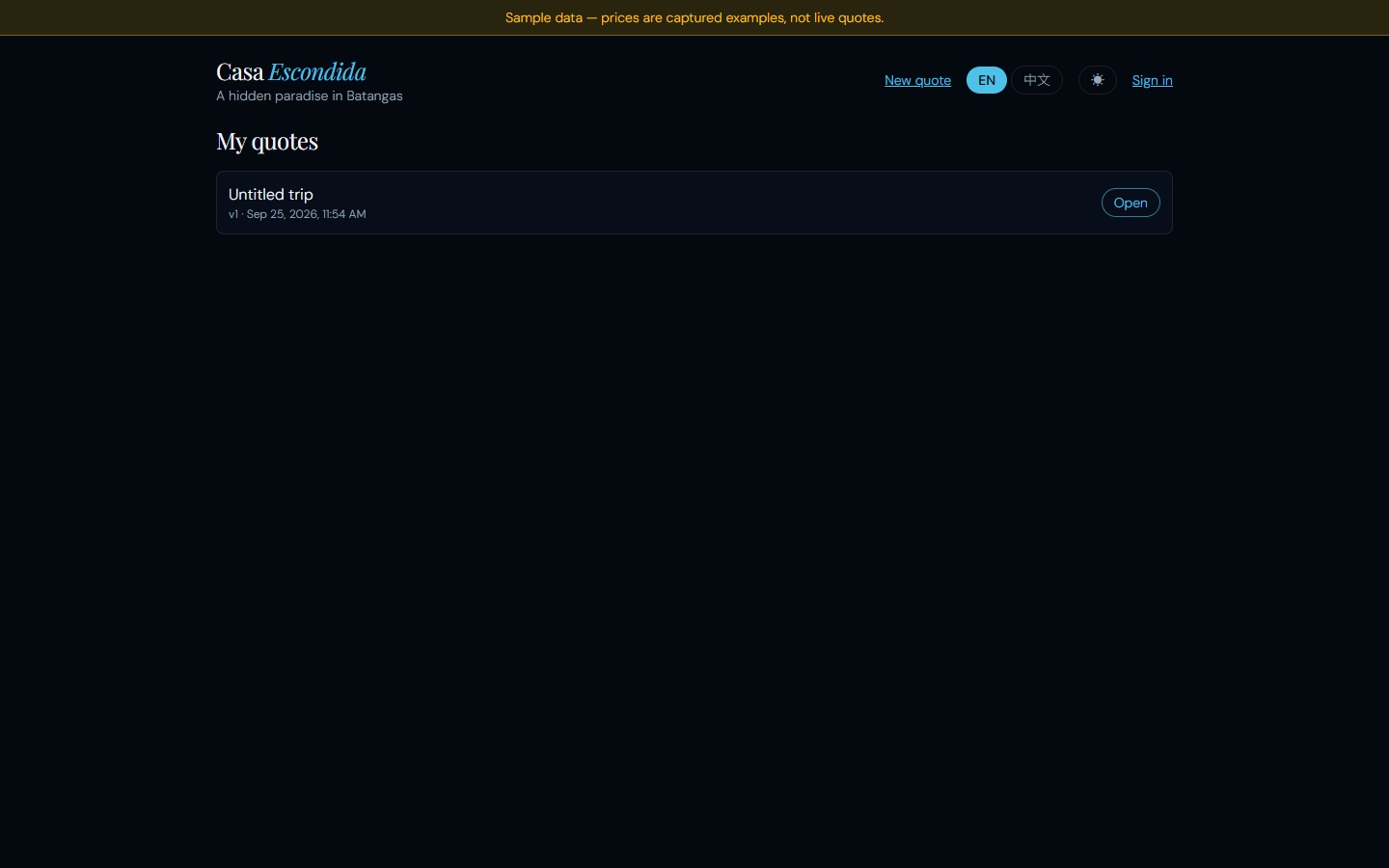

As a returning guest, I want to reopen an unfinished trip, so that I do not start over.
/ offers "Continue your last trip"; My quotes lists trips by cookie or by account./trip/:id reads only the app's store: 0 compute calls.Relies on: F01 D2, F02 D4, F03 D1
Epic: the person quoting edits each guest as on the paper sheet, without waiting for Odoo on every keystroke.

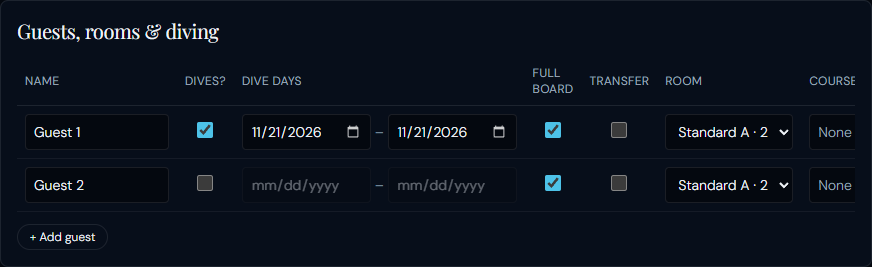

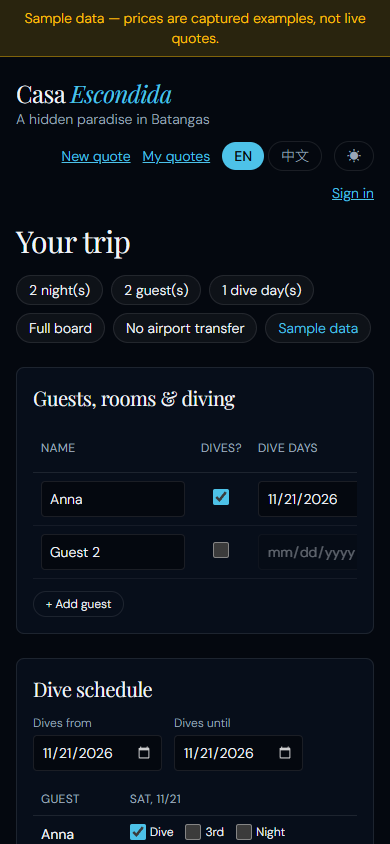

As the person quoting, I want to edit each guest in one table, so that the quote matches the real group.
Relies on: F05 D2
As the person quoting, I want to put guests into rooms, so that room prices reflect occupancy.
roomAvailability.Relies on: F05 D2 · Planned: real free rooms by date, a drag-and-drop room board (TG-05, TG-06)
As the person quoting, I want to tick who dives which day, third dive or night dive, so that diving is priced per person.
Relies on: F05 D2 · Planned: a dive planner by boat (TG-08)
As a guest, I want a day-by-day itinerary, so that I know when I arrive, dive, eat and leave.
Relies on: F05 D2 · Planned: an itinerary written as sentences (GE-03)
As the person quoting, I want to make several edits and reprice once, so that I do not wait and Odoo is not loaded for nothing.
PATCH, even on a double click.Relies on: F05 D5
Epic: a sent quote is a real, traceable thing, and opening its link costs no Odoo call.

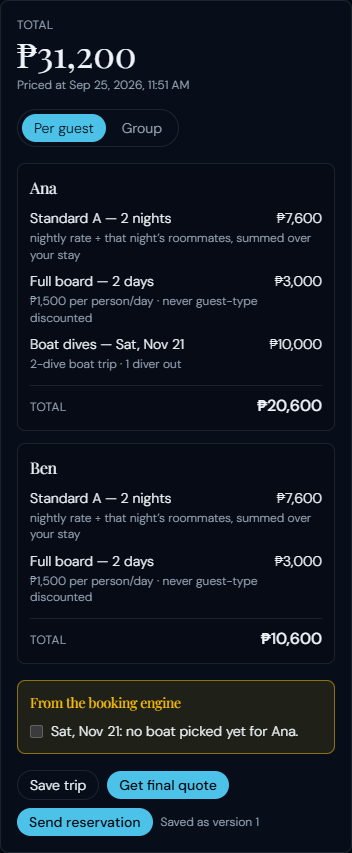

As the person quoting, I want Save trip to create version 1, 2, 3, so that I know which number the client holds.
Relies on: F02 D4, D3, F05 D1

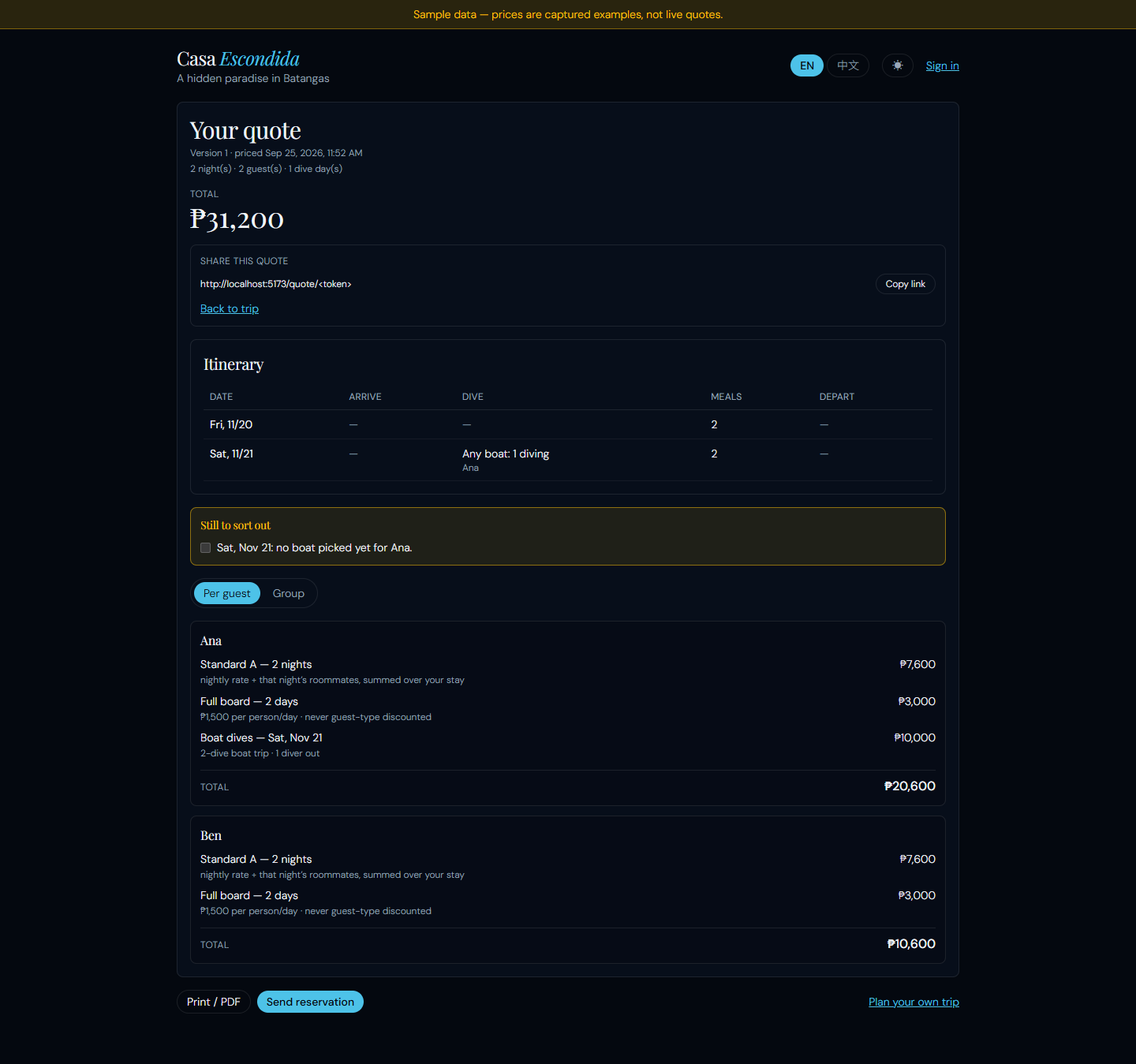

As the quote owner, I want Get final quote to give me a link right away, so that the client and family see the same version.
/quote/:token; the Share this quote block has the link, Copy link and Back to trip (owner only).sha256(token).

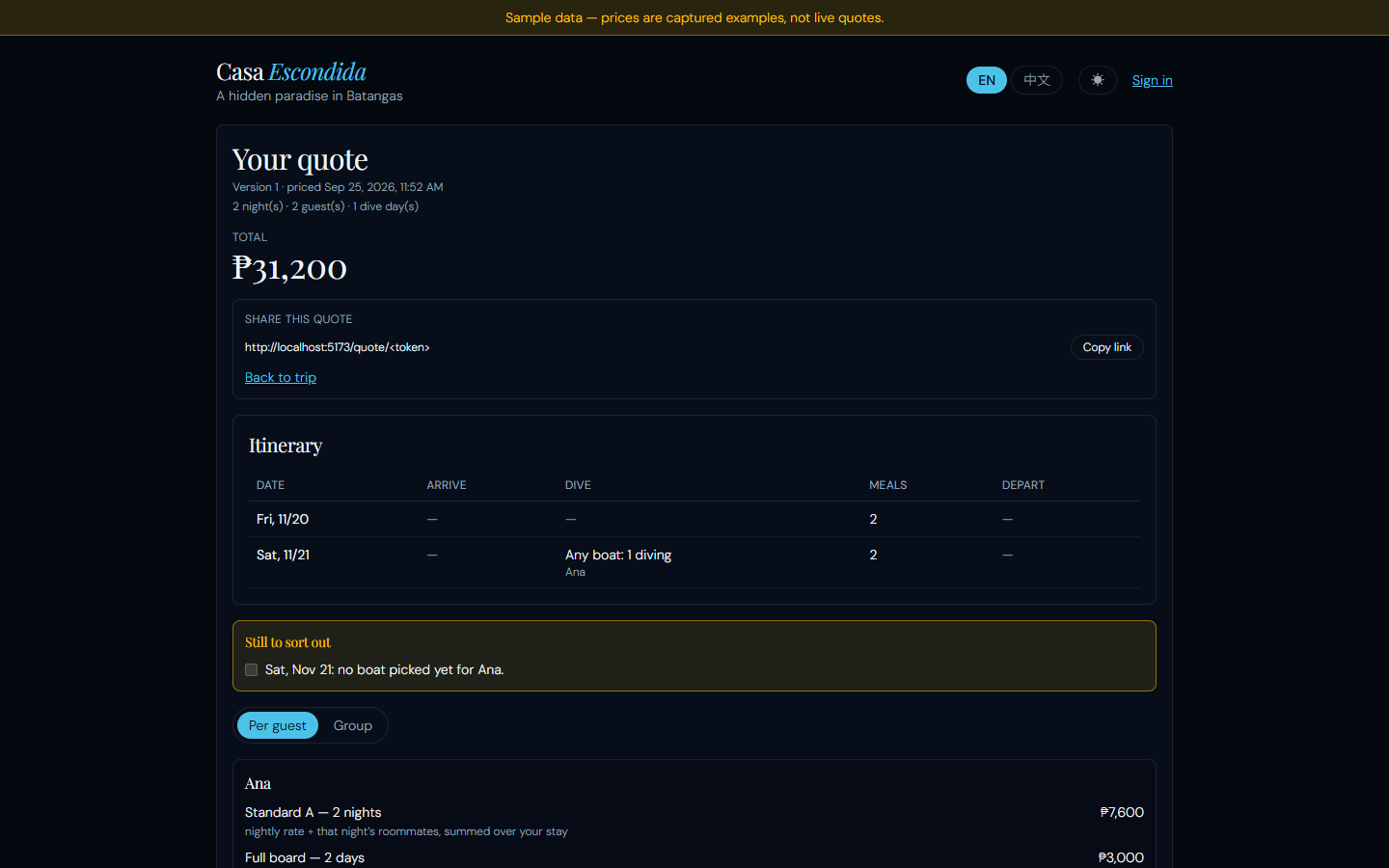

As a link recipient, I want to open the link on my phone without an account, so that I see what I will pay.
Relies on: F01 D1, D2, F04 D4
As the quote owner, I want to choose whether a link is frozen to the sent version or follows the latest, so that clients are not surprised by a new price.
Epic: Odoo owns accounts and prices by role; the app only keeps sessions.

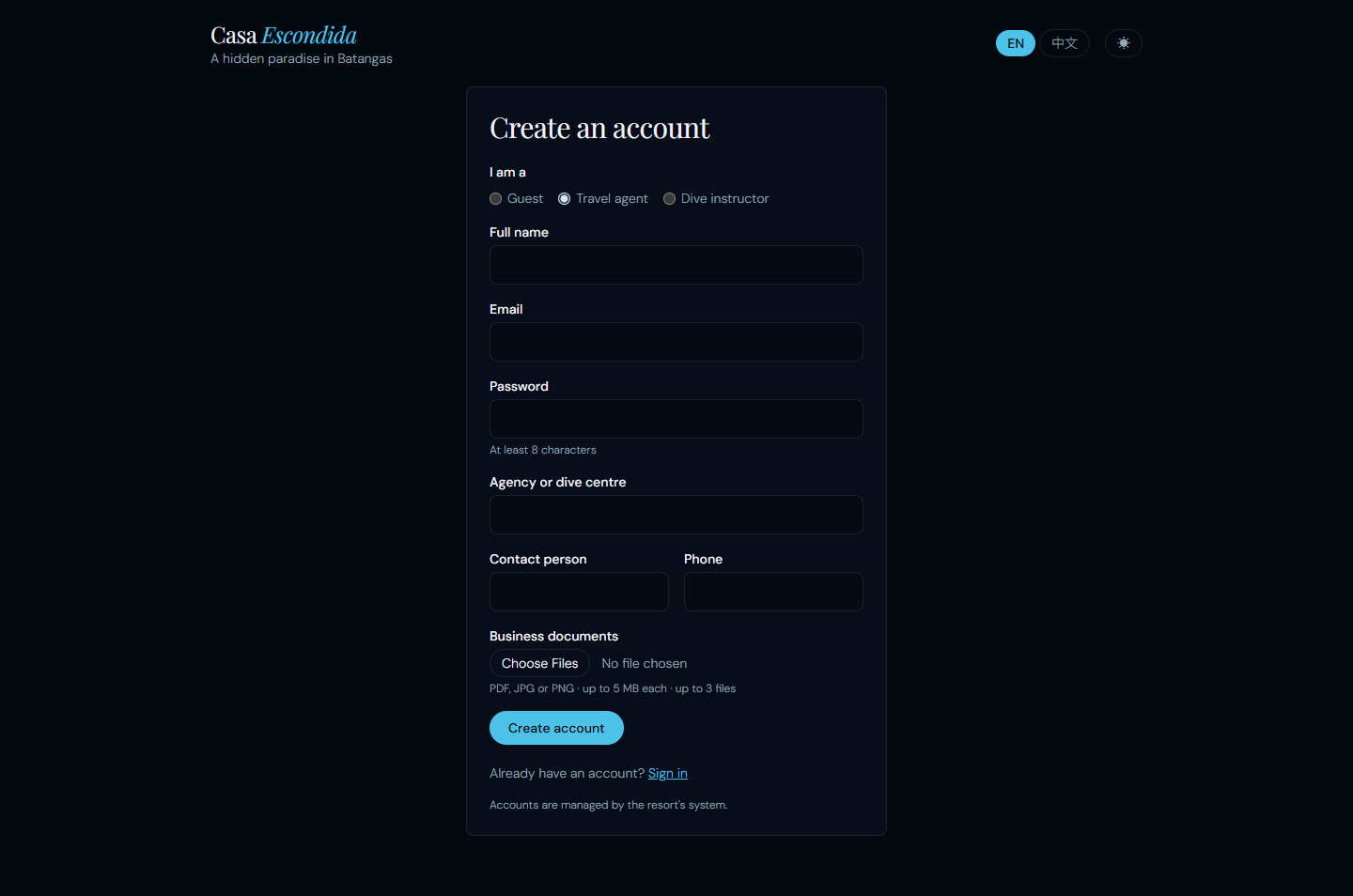

As a travel agent, I want to register and upload my documents, so that Casa can verify me and I get agent rates.
/register: Guest, Travel agent or Dive instructor; agents add Agency, Contact person, Phone and documents (PDF/JPG/PNG, 5 MB, three files).Relies on: F03 D1

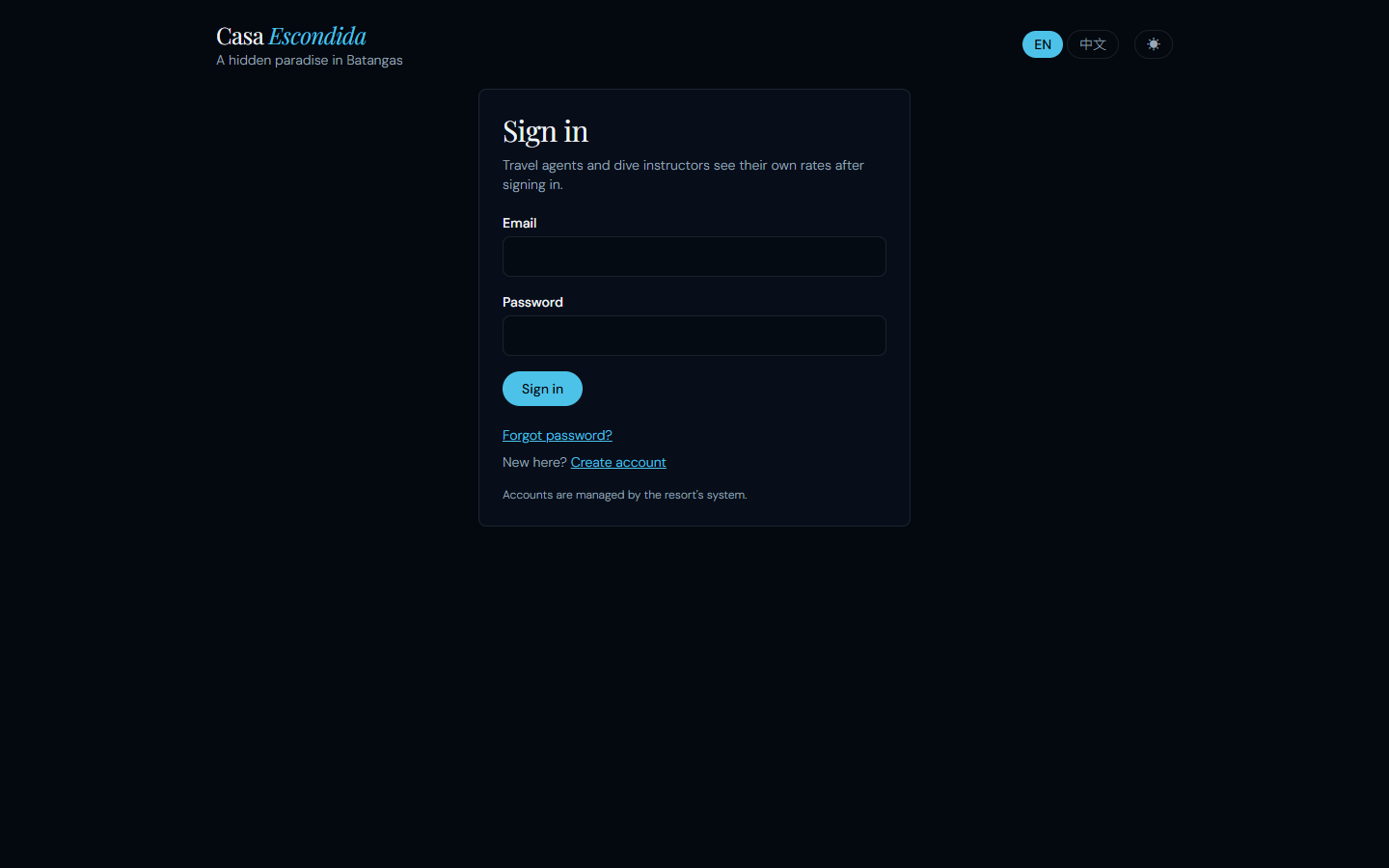

As an agent, I want to sign in without losing the trip I filled in anonymously, so that I continue with my rates.
Relies on: F03 D1, D3, D5
As a signed-in agent, I want prices from my rate card and to know when my account is not yet verified, so that I never pass retail prices on by mistake.
Relies on: F03 D2
As an agent, I want my links to open only for signed-in viewers, and to compare retail with net, so that my net rates stay private.
commission).Epic: the front desk gets a folio that matches the quote, and one quote never becomes two folios.

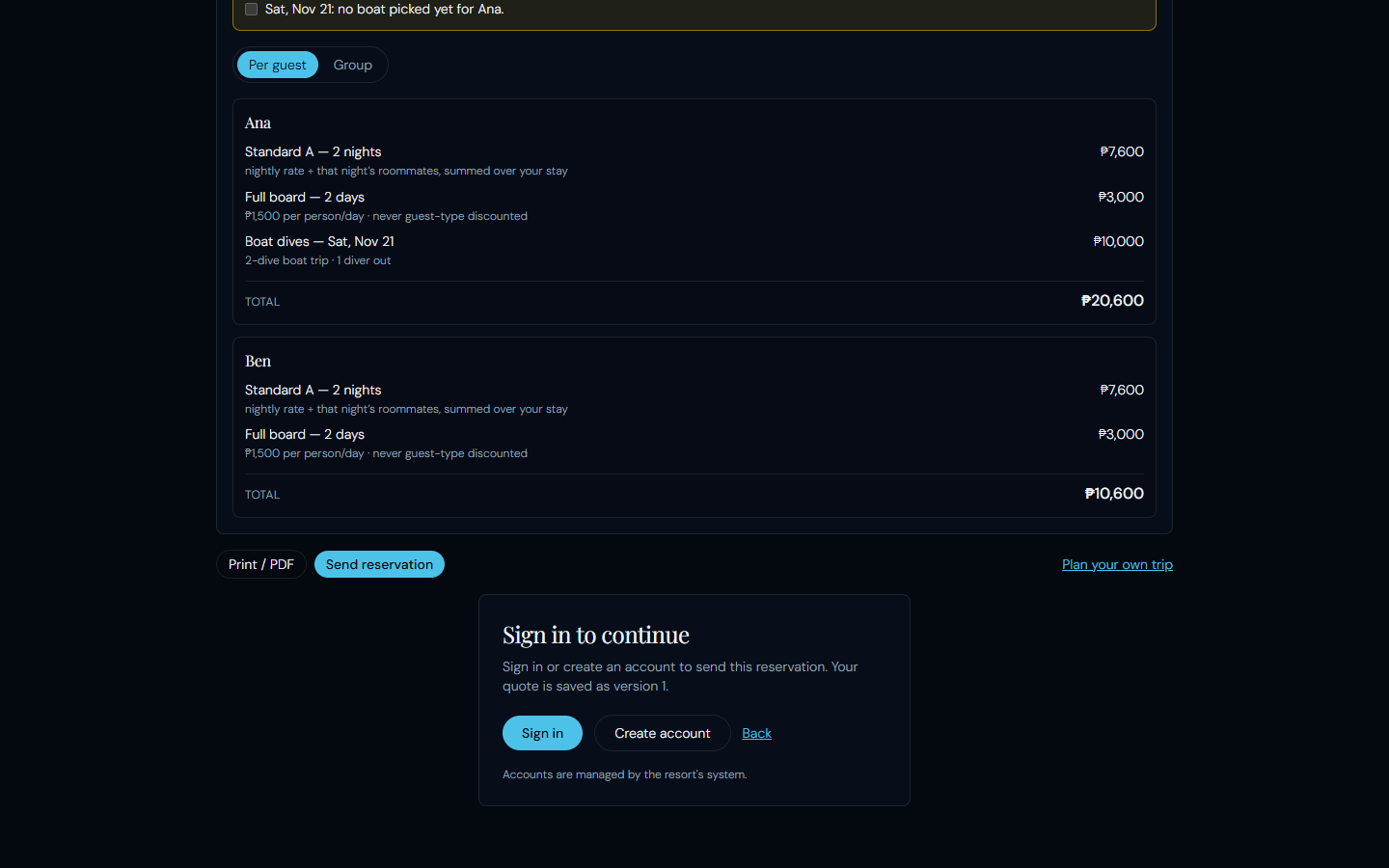

As a signed-in quote owner, I want Send reservation on the price card or the quote page, so that I can hold the booking once the client agrees.
As the quote owner, I want to review a summary and edit the contact before confirming, so that the front desk calls the right person.
/trip/:id/reserve: a summary of the latest saved version (dates, guests, Version n), no money.Relies on: F07 D1
As the front desk, I want each quote to create one folio however many times the sender clicks, so that I never cancel duplicates.
submission row is written as pending before the Odoo call; one live row per quote, so a double click gives one 200 and one 409.revision.trip of the latest saved version; a mismatched seq is 409 stale.POST /v1/booking/submit, no retry, 20-second timeout.ODOO_SUBMIT_ENABLED=1; otherwise 503 closed. Fixture returns a spec-shaped sample labelled "Sample — no folio was created".States of one submission
Relies on: F07 D1, D2, D3
As the quote owner, I want to see at once that a trip was already sent, so that I never send it twice.
As a guest, I want an email or WhatsApp confirmation; as staff, I want to resolve "unknown" sends, amend or cancel after sending, and send on a client's behalf.
Epic: staff replace the paper sheet for the morning meeting and change policy without a deploy.
As staff, I want one printable sheet per day for front desk, housekeeping, dive centre, kitchen and transfers, so that nobody copies by hand before the meeting.
Relies on: F06 D3 · Planned: handover notes, tanks and DMs, covers per meal (OS-02..OS-06)
As staff, I want to change draft retention, link expiry and display currency in the app, so that Casa policy applies without waiting for engineers.
Relies on: F06 D4
Epic: an impossible trip never reaches Odoo, because Odoo would not complain; it would price it wrong.

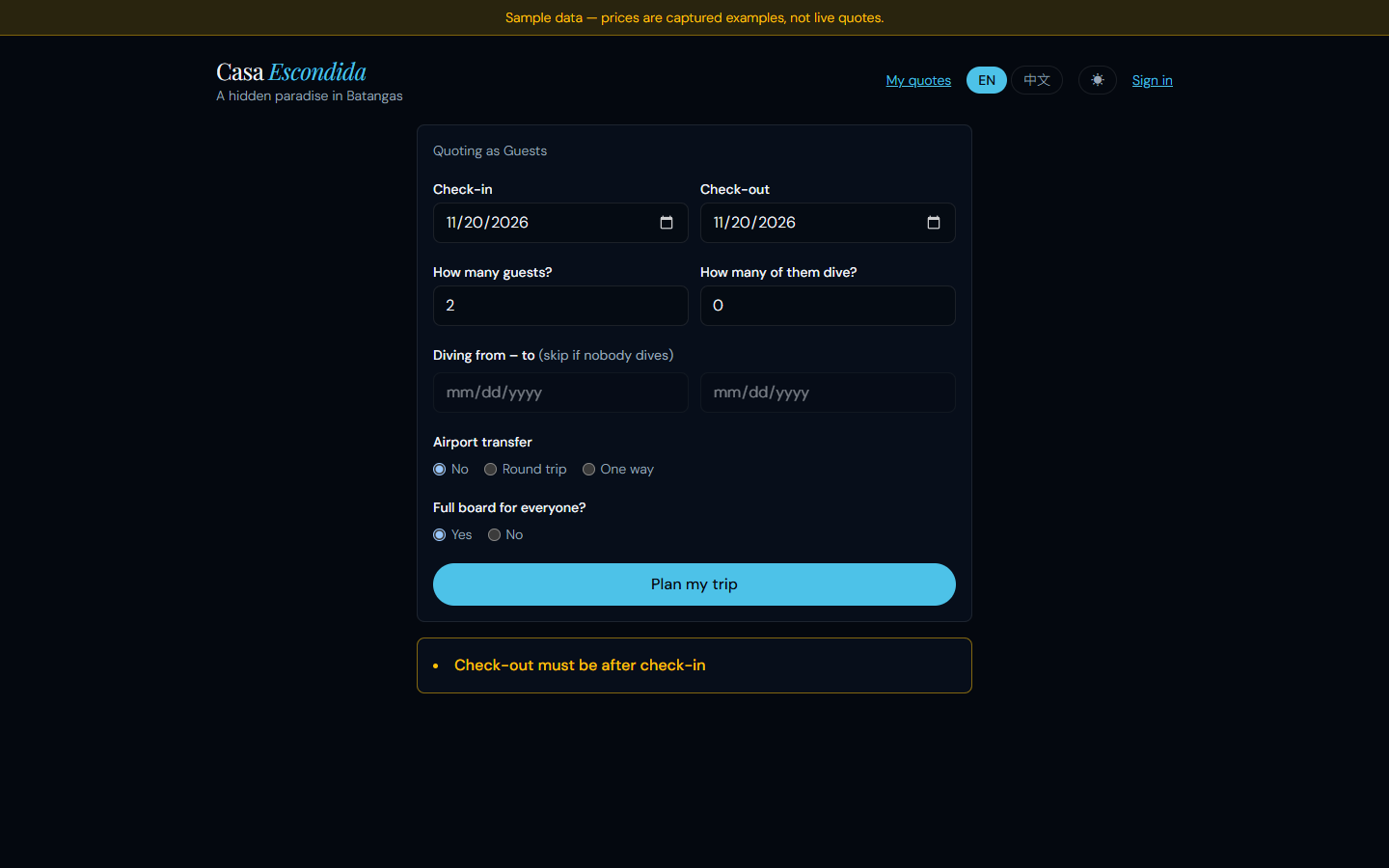

As the person quoting, I want errors on the wrong field before anything is sent, so that I never get a silently wrong number.
{error, code, fields, issues}, no Odoo call, nothing stored.fillTrip blocks six field groups; after compute, a sanity check flags unexpected zero revenue.| Code | Message shown | Level | Interim policy |
|---|---|---|---|
| checkout-not-after-checkin | Check-out must be after check-in | block | At least 1 night (Q-009) |
| checkin-in-past | Check-in cannot be in the past | block | Manila time; staff exempt (Q-012) |
| dive-window-reversed | Diving 'from' must be on or before 'to' | block | — |
| dive-window-outside-stay | Dive dates must fall within the stay | block | Both ends inclusive (Q-010, Q-008) |
| dive-days-outside-window | A guest has dive days outside the dive window | block | — |
| arrive-depart-outside-stay | Arrival or departure is outside the stay | block | — |
| room-empty | A room has no guests assigned | warn | Still priced (Q-011) |
Relies on: F05 D1, D5, F03 D2
Epic (parked, P5): a message becomes an editable quote link, through the same routes the form uses.
As a guest messaging Casa, I want a quote link back from my own message, so that I never fill a form.
Trip with per-field status; a missing required field is asked for, never defaulted./api/*: never Odoo directly, no key, no maths on money, never a reservation.POST /api/extract, the extraction table, a service identity for the bot.Contract for the AI team: docs/integration/schema.md in the repo.
Each flow is one file in docs/flows/, drawn before the code and amended in place when the flow changes. Five figures are redrawn in the site's design system; all 25 original ASCII diagrams sit in the collapsed "Original ASCII diagrams" under each flow.
Development and demos run without Odoo: the BFF answers from captured responses while every check still runs as in production.
D1 — Business flow: dev and demo run without Odoo
[Dev ] [UI React] [BFF Hono] [Fixture files] [Odoo]
| | | (contracts/odoo/ |
| FIXTURE_MODE=1 | | examples/*.json) |
| npm run dev:app | | | |
|------------------>| | boot: selectGateway(env) | |
| | | -> createFixtureGateway | |
| | | log "mode=fixture" | |
| mở trang | GET /api/warmup ~~~>| gateway.rates() ----------->| rates.json |
| | | | |
| điền form, bấm | POST /api/estimates>| fillTrip (như thật) | |
| Get price | | gateway.compute(trip) ----->| pickCompute(trip) |
| | | <- compute.<case>.json | |
| | | checkComputeSane, redact | |
| |<== 200 {model} =====| | |
| thấy số thật đã | | | (0 lời gọi) |
| chụp 17/09 | | | |D2 — Data flow: picking the gateway at boot
process.env
|
loadEnv() ----!---> throw "Thiếu ODOO_BASE_URL" (khi FIXTURE_MODE=0 mà thiếu)
|
Env { FIXTURE_MODE: boolean, ODOO_BASE_URL?: string,
ODOO_API_KEY_HEADER: 'api-key', ODOO_KEY_GUEST?: string, ... }
|
selectGateway(env)
/ \
FIXTURE_MODE=true FIXTURE_MODE=false
| |
createFixtureGateway() createEstimateGateway(env)
compute -> pickCompute(trip) compute ===> POST /v1/estimate/compute (header api-key: ODOO_KEY_GUEST)
rates -> rates.json rates ===> GET /v1/estimate/rates
rooms -> rooms.json rooms ===> GET /v1/estimate/rooms
\ /
`------ EstimateGateway -------' (một type, hai hiện thực)
|
createApp({ env, gateway }) <- không biết đang dùng cái nào
|
GET /api/health -> { ok: true, mode: 'fixture' | 'odoo' }D3 — How pickCompute chooses a fixture
trip |-- có ai diver=true VÀ thiếu diveFrom/diveTo? --yes--> compute.missing-divewindow.json | (không xảy ra trong app vì fillTrip đã chặn; giữ để test regression L-001 chạy được) |-- guestType === 'agent'? --yes--> compute.agent-group.json |-- có guest nào courses.length > 0? --yes--> compute.courses.json `-- còn lại (kể cả guestType === 'instructor', chưa có fixture riêng) --> compute.retail-couple.json
The P1 flow: Save freezes a version, Get quote issues a link, and the recipient opens it without an account. P1's live pricing was replaced by Flow A (F05).
D1 — P1 flow: fill → price → Save → Get quote → recipient opens the link
[Khách] [UI React] [BFF Hono] (Draft store) [Odoo]
| | | | |
| mở / | GET /api/health ~~~~~~~~>| {ok, mode} | |
| | GET /api/settings ~~~~~~>| {display_currency, ...} | |
| | GET /api/me ------------>| cookie? không -> {role:'guest', session:false} |
| | | | |

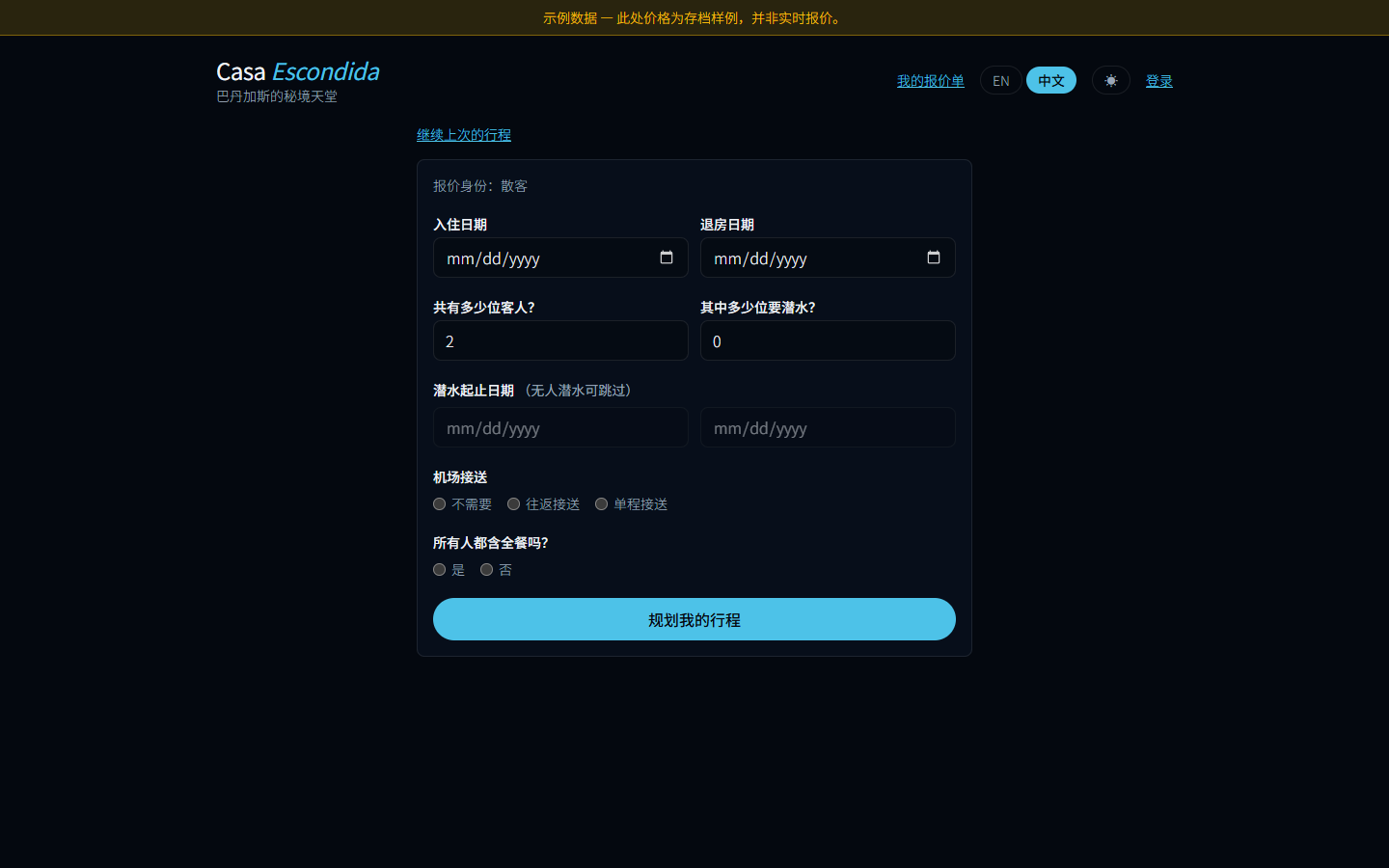

| điền 7 câu (EN/中文) | | | |
| đổi trường có giá | debounce 400ms | | |
|-------------------->| POST /api/estimates ====>| set-cookie ubg_sid (nếu chưa) | |
| | {trip} | fillTrip ! 422 | |
| | | newScenario(owner, trip) ---->| scenario |
| | | compute ===================================>|
| | |<========================== model ===========|
| |<== 201 {id, model, issues, computedAt} ==| | |
| thấy tổng + dòng | | | |
| "vì sao" (lines.sub)| | | |
| | | | |
| sửa tiếp | PATCH /api/estimates/:id | {trip, save:false} -> compute (cache) ---------->|
| | (mỗi 400ms) | {trip, save:true} -> + saveWorkingTrip ->| scenario.working_trip
| | | | |
| bấm SAVE | POST /:id/commit ======>| compute (cache hit) ---------------------------->|
| | | commitRevision(seq=n) ------->| revision |
| | | saveSnapshot(model,role) ---->| snapshot |
| |<== 200 {seq, snapshotId, computedAt} ==| | |
| "Saved as version 1"| | | |
| | | | |
| bấm GET QUOTE | POST /:id/share ========>| token = random32; store sha256(token) ->| share_token
| |<== 200 {url:/quote/<token>} | |
| copy link, gửi | | | |
...
[Gia đình] mở /quote/<token> GET /api/share/<token> =>| sha256 -> share_token -> scenario -> snapshot mới nhất
(không login) <== 200 {trip, model, seq, computedAt, sample, currency} (0 lời gọi Odoo)
xem từng khách / cả nhóm, bấm Print -> print CSSD2 — Server data flow: route ↔ function ↔ table
request
|-- middleware requestId (có) -> c.get('requestId')
|-- middleware resolveOwner (T5) -> c.get('owner') = { role:'guest', ref: sid } | null
|
|-- POST /api/session/guest ---> signGuestCookie(secret) --> Set-Cookie ubg_sid
|-- GET /api/me --------------> owner ? {role, session:true} : {role:'guest', session:false}
|-- GET /api/settings --------> settings.public() <- app_setting (cache boot, mặc định tạm)
|
|-- POST /api/estimates -------> ensureOwner -> fillTrip -> store.newScenario(owner, trip)
| -> gateway.compute(trip, role, today) -> sane -> redact
| -> 201 {id, model, issues, computedAt}
|-- PATCH /api/estimates/:id --> ensureOwner -> store.getScenario(id, owner) ! 404
| -> fillTrip -> compute -> sane -> redact
| -> save ? store.saveWorkingTrip(id, trip, ui) : (không ghi)
|-- POST /:id/commit ---------> getScenario ! 404 -> compute(working_trip) -> redact(owner.role)
| -> store.commitRevision(id, trip) -> seq
| -> store.saveSnapshot(revisionId, {model, role, computedAt, odooMs})
|-- GET /api/estimates ------> store.listScenarios(owner) (id, label, status, updated, latestSeq)
|-- GET /:id ----------------> getScenario ! 404 + latestRevision + snapshot
|-- GET /:id/revisions[/:seq]-> store.listRevisions / getRevision
|-- POST /:id/share ----------> getScenario ! 404 -> token=random(32) -> store.createShareToken(id, sha256(token), expiresAt?)
| -> 200 {url: '/quote/'+token}
`-- GET /api/share/:token ----> store.resolveShare(sha256(token)) ! 404 / 410 hết hạn
-> latestSnapshot(scenario) ! 404 nếu chưa commit
-> 200 {trip, model, seq, computedAt, sample: snapshot.sample, currency}D4 — Version state machine
POST /api/estimates PATCH save:false PATCH save:true
() ----------------------> [draft, seq=0] ----(compute only)----> [draft, seq=0] ---(working_trip)--> [draft, seq=0]
| |
| POST commit |
v v
[draft, seq=1] --- PATCH... --- commit ---> [draft, seq=2] ... (n lần Save = n bản)
|
| POST share (không đổi seq; token -> scenario)
v
/quote/<token> đọc snapshot(seq mới nhất tại lúc mở)
|
| (P2) submit -> [submitted] (không xoá, không expire)
TTL: draft quá draft_ttl_days -> [expired] (job P1 chỉ có hàm store.expireDrafts(now); lịch chạy là P2)Where quotes are kept. The rule: a draft can change, a version cannot.
Draft store data model (F02 D3 + F03 D3 + F07 D3)
D4 — Version state machine
POST /api/estimates PATCH save:false PATCH save:true
() ----------------------> [draft, seq=0] ----(compute only)----> [draft, seq=0] ---(working_trip)--> [draft, seq=0]
| |
| POST commit |
v v
[draft, seq=1] --- PATCH... --- commit ---> [draft, seq=2] ... (n lần Save = n bản)
|
| POST share (không đổi seq; token -> scenario)
v
/quote/<token> đọc snapshot(seq mới nhất tại lúc mở)
|
| (P2) submit -> [submitted] (không xoá, không expire)
TTL: draft quá draft_ttl_days -> [expired] (job P1 chỉ có hàm store.expireDrafts(now); lịch chạy là P2)D3 — Draft store ERD (P1: 5 tables)
+----------------------+ +--------------------+ +----------------------+
| scenario |1 n | revision |1 1 | snapshot |
|----------------------|--------|--------------------|--------|----------------------|
| id uuid pk | | id uuid pk | | id uuid pk |
| owner_role text | | scenario_id fk | | revision_id fk uniq |
| owner_ref text | | seq int | | model jsonb |
| source text 'form' | | trip jsonb | | role text |
| status text 'draft' | | author text 'human'| | sample bool |
| label text null | | created_at | | rates_version text ? |
| working_trip jsonb | | uniq(scenario_id, | | computed_at |
| working_ui jsonb | | seq) | | odoo_ms int |
| created_at,updated_at| +--------------------+ +----------------------+
| expires_at |
+----------------------+
|1
|n
+----------------------+ +----------------------+
| share_token | | app_setting |
|----------------------| |----------------------|
| token_hash text pk | | key text pk |
| scenario_id fk | | value jsonb |
| created_at | | updated_at |
| expires_at null | +----------------------+
| revoked_at null |
+----------------------+
idx: scenario(owner_role, owner_ref, updated_at desc); revision(scenario_id, seq); share_token(scenario_id)
RLS: ENABLE ROW LEVEL SECURITY trên cả 5 bảng, KHÔNG có policy -> anon/authenticated đọc = 0 dòng.D5 — Cookie and token security
guest cookie sid = base64url(random 16B) token = base64url(random 32B)
sig = HMAC-SHA256(secret, sid) DB lưu token_hash = sha256(token)
Set-Cookie: ubg_sid=<sid>.<sig>; URL /quote/<token> (token thô chỉ có ở URL)
HttpOnly; SameSite=Lax;
Path=/; Max-Age=30d; Secure*
verify: tách '.', timingSafeEqual(sig, HMAC(sid)) lookup: sha256(token) -> hàng; không có -> 404
sai -> coi như không có cookie (không 401) hết hạn/revoked -> 410
owner_ref = sid (chưa bao giờ = token) token không map ngược ra ownerOdoo owns accounts; the app passes the password once, keeps a session, merges anonymous drafts into the account and lets Odoo decide the price by role.
Role resolution and pricing (F03 D2)
D1 — Register → sign in → merge drafts → role pricing → sign out
[Agent] [UI React] [BFF Hono] [Odoo]
| | | |
| mở app ẩn danh | | cookie ubg_sid |
| điền chuyến (P1) | POST /api/estimates ====>| scenario owner=guest:<sid> -> (scenario) insert
| | | |
| bấm SIGN IN | POST /api/auth/login ==>| {email,password} |
| | | ========================================>| POST /v1/auth/login
| | |<========================================| {api_key,role,name,expires_at}
| | | encrypt(api_key) -> insert -> (user_session)
| | | reassignOwner(guest:sid -> agent:odoo:login)
| | | -> (scenario) update owner_role,owner_ref
| | | Set-Cookie ubg_auth (HttpOnly) |
| |<== 200 {role:'agent',name,pendingVerification} ==| |
| | (mật khẩu không lưu, không log) |
| | | |
| bấm UPDATE PRICE | PATCH /api/estimates/:id| resolveOwner(ubg_auth) -> decrypt key |
| | ====================>| ========================================>| compute (api-key: agent key)
| | |<========================================| model (giá vai agent card,
| | | | hoặc guest nếu chưa verify)
| |<== 200 {model,...} + badge "Pending verification" nếu |
| | response.role != session.role ======================| |
| | | |
| (ĐĂNG KÝ, trước 2) | POST /api/auth/register| |
| | ====================>| ========================================>| POST /v1/auth/register
| | |<========================================| {login,role,verified:false}
| | | | + To-Do lễ tân verify
| |<== 200 "check email / pending verification" ==| |
| | | |
| bấm LOGOUT | POST /api/auth/logout ==>| ========================================>| POST /v1/auth/logout
| | | | (Odoo revoke key)
| | | set revoked_at -> (user_session) update |
| | | clear cookie ubg_auth (nháp giữ nguyên chủ)|
| |<== 200 =================| |
! sai mật khẩu -> Odoo 401 -> BFF trả 401 "Invalid email or password" (giống hệt email lạ)
! quá 5 lần/phút/IP -> 429 rate limitD2 — Where a priced request goes (guest vs signed in)
request
|-- resolveOwner(secret, sessions): (không đổi)
| đọc cookie ubg_auth trước
| -> verify HMAC ! sai chữ ký -> coi như không có, rơi xuống nhánh ubg_sid
| -> (user_session) lookup theo id: not revoked, key chưa hết hạn
| -> owner = { role: session.role, ref: 'odoo:' + session.odoo_login }; c.set('session', row)
| không có / hết hạn -> đọc cookie ubg_sid
| -> owner = { role: 'guest', ref: sid }
| không có cookie nào -> owner = null
|
|-- NEW deriveGuestType(owner, trip):
| owner null / role 'guest' -> trip.guestType = 'retail'
| role 'agent' -> 'agent'
| role 'instructor' -> 'instructor'
| role 'staff' -> giữ payload (staff báo giá thay người khác)
| ! payload khác giá trị ép (non-staff) -> thay, log guestTypeOverridden, không 4xx
| (cùng bước: bookedDaysAhead = max(0, checkIn - today), bỏ giá trị client)
|
|-- credentialFor(owner, session, env): (không đổi)
| owner.role === 'guest' -> { role:'guest', apiKey: env.ODOO_KEY_GUEST }
| owner đăng nhập -> { role: session.role, apiKey: decrypt(session.odoo_key_enc) }
| AES-256-GCM, key = HKDF(SESSION_SECRET, 'odoo-key')
|
|-- gateway.compute(trip, credential, today) (không đổi; trip = trip đã derive)
| ===> Odoo header api-key: <apiKey>
| {cache} key = tripKey(trip) + ':' + sha256(apiKey ?? 'anon').slice(0,16), ttl 60s
| <=== { role, model, retail_model }
|
|-- checkComputeSane(trip, model) (không đổi)
|-- redactForRole(model, response.role) -- redact theo vai Odoo THỰC SỰ dùng, không theo owner.role
|
`-- CHANGED 200 { role: response.role, model (kèm model.warnings của Odoo), retailModel?,
issues (sane + warn của validateTrip), computedAt, pendingVerification }D5 — Fixture auth when FIXTURE_MODE=1
selectAuth(env)
|
+-- FIXTURE_MODE=1 --> createFixtureAuth()
| |
| +-- 3 tài khoản cố định, password <ẩn>:
| | <QA guest> -> role guest, key fx-guest
| | <QA agent> -> role agent, key fx-agent
| | <QA staff> -> role staff, key fx-staff
| |
| +-- login/register/forgot/logout: không có mạng, trả kết quả trong bộ nhớ
| |
| `-- compute: role in {agent,instructor,staff}
| -> fixture chọn file agent-group.json
| role = guest -> fixture P1 cũ (retail/...)
|
`-- khác --------> createOdooAuth(env)
|
`-- login/register/forgot/logout ===> gọi thật /v1/auth/* trên Odoo
Cả hai implement cùng interface AuthGateway:
register(input) · login(email, password) · logout(apiKey) · forgot(email)D3 — ERD: user_session and moving scenario ownership
+--------------------------+ +-----------------------------------------------+
| user_session | | scenario (đã có, P1) |
|--------------------------| |-------------------------------------------------|
| id text pk (16B b64url) | | id uuid pk |
| role text | | owner_role text 'guest' | 'agent' | ... |
| (guest|agent|instructor| | owner_ref text sid | 'odoo:'+login |
| |staff) | | ... |
| odoo_login text | +-----------------------------------------------+
| display_name text | ^
| odoo_key_enc bytea | | update owner_role, owner_ref
| key_expires_at timestamptz| | where owner_role='guest'
| null | | and owner_ref = sid
| created_at | reassignOwner(from{guest,sid} -> to{agent,'odoo:'+login})
| last_seen_at |
| revoked_at null | KHÔNG có khoá ngoại giữa user_session và scenario --
+--------------------------+ owner_ref là chuỗi 'odoo:<login>', không phải id bảng này.
+----------------------------+
| share_token (đã có, P1) |
|----------------------------|
| token_hash text pk |
| scenario_id fk |
| ... |
| requires_login boolean | <-- cột mới: true khi scenario.owner không còn là guest
+----------------------------+
RLS: bật trên user_session, KHÔNG có policy (đóng, giống 5 bảng P1) -> chỉ BFF nối bằng DATABASE_URL.A guest's link is public; a link from an account (agent, instructor, staff) needs the viewer to sign in.
D4 — Gated quote link (Q-002)
GET /api/share/:token
|
v
resolveShare(sha256(token))
|
+-- không thấy / hết hạn --------------------------------------! 404 / 410
|
v
requires_login ?
|
+-- false (P1 path, không đổi) -----------------------------------> 200 snapshot
|
+-- true
|
v
requester đã đăng nhập? (owner từ cookie ubg_auth, resolveOwner như D2)
|
+-- có -----------------------------------------------------> 200 snapshot
|
`-- không --------------------------------------------------! 401
{ error: 'login required', reason: 'login' }
UI hiện thẻ gate: "Sign in · Create account · Back"
sau khi đăng nhập -> UI gọi lại đúng URL /api/share/:tokenD4 (P2 change) — Send reservation on the quote page
200 snapshot (cả hai nhánh trên)
|
+-- NEW: getScenario(row.scenarioId, viewer) khác null (người xem LÀ chủ) -> thêm `scenarioId`
`-- không phải chủ / ẩn danh ---------------------------------------------> không có khoá đó
/quote/:token bấm SEND RESERVATION (NEW, P2)
|
+-- chưa đăng nhập -----------------------------> AuthGate (Q-004) — như P3
|
+-- đã đăng nhập, share response có `scenarioId` (NEW: chỉ trả khi người xem LÀ chủ)
| -----------------------------------------> navigate /trip/:id/reserve
|
`-- đã đăng nhập, không phải chủ ----------------> t('quote.askOwner'): "Ask the person who
sent this quote to confirm the booking."
(Q-014 pending), không requestData flow — issuing and reading a gated link
POST /api/estimates/:id/share (chủ nháp, riêng tư)
getScenario(id, owner) ! 404
latestSnapshot(scenario.id) ! 409 save first
requiresLogin = scenario.owner.role !== 'guest' <-- chốt LÚC PHÁT, không đọc lại sau
createShareToken(id, owner, sha256(token), expiresAt, requiresLogin) -> (share_token)
200 { url: '/quote/<token>', expiresAt }
GET /api/share/:token (công khai, không cookie mới, không Odoo)
TOKEN_SHAPE ! 404 -> resolveShare ! 404 -> revoked/expired ! 410
-> requiresLogin && session == null ! 401 { error:'login required', reason:'login' }
-> latestSnapshot(scenarioId) ! 404 no-snapshot
-> viewerRole = owner?.role ?? 'guest' (vai NGƯỜI XEM, không phải vai chủ)
-> model = redactForRole(snapshot.model, viewerRole)
retailModel = viewerRole === 'guest' ? null : redactForRole(snapshot.retailModel, viewerRole)
200 { seq, trip, model, retailModel, computedAt, sample, currency, label: null,
scenarioId? <-- NEW (P2): chỉ khi getScenario(row.scenarioId, viewer) !== null }A form with no numbers, Plan my trip, an editable Result page, Update price, Save trip, Get final quote.
Flow A (F05 D1)
D1 — Flow A: Form → Plan my trip → Result → Update price → Save → Get final quote
[Khách/Agent] [UI React] [BFF Hono] [Odoo]
| | | |
| mở "/" (chưa | GET /api/me ---------> owner.role |
| có giá) | NEW: vai guest/agent/instructor (và ẩn danh) -> ẨN radio |
| | Guests/Agent/Instructor, hiện "Quoting as <vai>"; |
| | staff -> radio giữ; /api/me chưa về -> không hiện cả hai |
| điền câu hỏi | DateField min/max, MultiPick cap 5 — gợi ý, không chặn |
| | (form noValidate, L-022) |
| PLAN MY TRIP | NEW guestType = forcedGuestType(role) (chưa biết vai -> retail)|
| | NEW validateTrip(trip) thuần, không mạng |
| | ! error -> state 'invalid', ô aria-invalid, t('invalid.<code>')
| | POST /api/estimates =>| TripSchema.parse (trong fillTrip) |
| | | ! ZodError -> 422 {error, fields} CHANGED
| | | (map issue.path, hết "Trip không hợp lệ" trống)
| | | fillTrip (6 trường bắt buộc, giữ nguyên) |
| | | NEW validateTrip(trip,{today,role}) |
| | | ! error -> 422 {error, code, fields, issues}
| | | NEW deriveGuestType(owner.role, trip) |
| | | NEW bookedDaysAhead = days(checkIn-today)|
| | | -> newScenario -> (draft) insert |
| | | ====================================>| compute
| | |<======================================| model
| | | checkComputeSane (giữ) |
| |<== 201 {id, model, | |
| | issues} ==========| CHANGED issues = sane + warn (room-empty)
| | navigate -> /trip/:id | |
| | | |
| Result render 4 khối: Trip summary · Guests table (sửa được) · |
| Dive schedule grid (sửa được) · Itinerary (chỉ đọc: dayPlans/presence/ |
| vanRuns/covers) · Price card — CHANGED: Price card hiện cả `issues` (sane + warn)|
| VÀ `model.warnings` (của Odoo, ví dụ "no boat picked yet for Ana") dưới |
| "From the booking engine", không chỉ ở /quote |
| | | |
| sửa Guests / | (không gọi mạng) | |
| Dive schedule | Price card -> "Outdated" + nút Update price hiện ra |
| | | |
| UPDATE PRICE | NEW validateTrip trước | |
| | ! error -> 'invalid', KHÔNG PATCH |
| | PATCH /:id {trip,ui, | cùng chuỗi: parse -> fillTrip -> |
| | save:true} ========>| validateTrip -> deriveGuestType -> |
| | | bookedDaysAhead |
| | | ====================================>| compute
| | |<======================================| model
| | | sane -> saveWorkingTrip -> (draft) update
| |<== 200 {model,issues} | |
| | render lại cả 4 khối theo model mới |
| | | |
| SAVE TRIP | POST /:id/commit ====>| compute (cache hit, không gọi lại Odoo)|
| | | -> (draft) insert revision + snapshot |
| |<== "Saved as version n"| |
| | | |
| GET FINAL QUOTE | CHANGED (P2): chỉ bật khi savedIsCurrent (bản Save = trip đang thấy)
| | POST /:id/share =====>| -> (draft) insert share_token |
| |<== /quote/<token> ====| |
| | CHANGED (25/09, A8): navigate -> /quote/<token>; trang quote có khối
| | "Share this quote" (link đầy đủ + Copy + Back to trip) cho CHỦ |
| | | |
| (sau GET FINAL QUOTE, đã Save seq n) |
| SEND RESERVATION | NEW: xem F07 D1 — chỉ chủ đã đăng nhập; gửi revision.trip seq n |
| | POST /:id/submit ==>| submission pending -> Odoo submit -> confirmed
| |<== {state, folioId} ==| |
| | | |
| (mở lại /trip/:id | GET /api/estimates/:id| -> (draft) select workingTrip + |
| sau đó) | =================>| latest snapshot |
| |<== 200 {workingTrip, | — 0 lời gọi Odoo |
| | model} ===========| |
| (mở lại /trip/:id)| NEW: GET /:id/submission -> banner "Reservation sent", Send khoá |
! POST /api/estimates thiếu trường -> 422 -> hint ngay trên form, KHÔNG điều
! hướng sang /trip/:id
! compute lỗi 502/503/504 -> Price card "Odoo busy, Try again", bảng vẫn sửa được
! validateTrip client đỏ -> KHÔNG gọi mạng; server vẫn kiểm lại (script/API lách UI)
! non-staff gửi guestType khác vai phiên -> BỊ THAY, không 4xx, log guestTypeOverriddenD2 — Result data flow: from an edited cell to the model
client state: { trip: TripShape, ui, model, dirty: boolean }
Guests table (sửa 1 dòng) ---> trip.guests[i].{name,diver,meals,transport,
roomId,courses,arrive,depart}
From–to quick fill ---> guests[i].days[date] = {dive:true} (mọi ngày trong khoảng)
Dive schedule cell ---> guests[i].days[date].{dive,third,night,boatId}
(grid = nguồn sự thật)
+ Add guest ---> guests.push(g<n>)
+ Add room ---> rooms.push({id:'r<n>', type})
bất kỳ sửa nào -----------------------------------------------------> dirty = true
bấm UPDATE PRICE
|
v
PATCH /api/estimates/:id {trip, ui, save:true}
|
| ===================================================================> [Odoo] compute
|<===================================================================|
v
response { model, issues, retailModel, pendingVerification } ---> dirty = false
render map (client không tự tính tiền — chỉ đọc lại model):
model.kpis.{nights,guests}, model.diveDates ---> Trip summary
model.roomAvailability[type] + rates.courseRates keys
+ GET /api/boats -----------------------------------> các ô select (Guests / Dive schedule)
model.dayPlans[date].divers, presence[date],
vanRuns, covers[date] ---> Itinerary (chỉ đọc)
model.quotes / model.kpis / model.foc / model.retail_model ---> Price cardD5 — Price card state machine on Result
sửa Guests/Dive schedule
+--------------------------------------------+
| v
+---------+ +-----------+
| priced |<---------------------------+ | outdated | (viền hổ phách,
+---------+ success (model mới) | +-----------+ nút Update price)
^ | |
| seq+1 + toast | | bấm UPDATE PRICE
| | v
+---------+ bấm SAVE TRIP +-----------+ +-----------+
| priced |<--------------------| priced | | pricing | (skeleton)
+---------+ +-----------+ +-----------+
^ | |
| thất bại | | 422
| +-----------+ | v
+----------------------------|unavailable|<-----+ +----------+
"Try again" +-----------+ | invalid | (field hint,
(Try again -> +----------+ bảng vẫn
pricing) | sửa được)
| sửa field -> outdated
Get final quote: bật chỉ khi seq >= 1 và state === 'priced' (không phải outdated)
-> đang outdated: nút mờ + hint "Update price first"
Reopen /trip/:id: có snapshot/model -> bắt đầu ở 'priced'; không có -> 'outdated'An Ops Sheet per day, printed for the morning meeting, and Settings that apply without a restart.
Trip workspace tabs by role
D3 — Ops Sheet (staff) data flow
[Staff] [UI React] [BFF Hono] [Odoo/Draft]
| | | |
| mở /ops/:id | GET /api/me =========>| resolveOwner |
| |<== role != 'staff' ===| role != 'staff' -> UI: thẻ 404 |
| | | |
| | GET /api/estimates/:id| owner.role==='staff' ? |
| | =================>| getScenarioAsStaff(id) (bỏ lọc chủ) |
| | | : getScenario(id, owner) |
| | | -> (draft) select scenario ----------->|
| | | -> latestSnapshot --------------------->|
| |<== {workingTrip, | |
| | latest.model} ====| |
| | | |
| UI dựng theo stayDates[i]: |
| Front desk <- gwin[g].{a,dep} (arrivals / departures) |
| Housekeeping <- trip.rooms x guest.roomId -> roomNames |
| Dive centre <- dayPlans[date].divers, gộp theo boatId (đếm dive/third/night) |
| Kitchen <- covers[date] |
| Transfers <- vanRuns (vans, vanCount, pax) |
| PRINT -> print CSS (không gọi mạng thêm) |
| | | |
| (danh sách) | GET /api/estimates? | owner.role==='staff' -> |
| | scope=all ========>| listAllScenarios() |
| |<== toàn bộ scenario ==| |
! không phải staff mà gọi ?scope=all -> BFF BỎ QUA scope, trả listOwn(owner) như
! thường (không phải 403, không phải {items:[]} rỗng)D4 — Settings write path and reload (B-011)
[Staff] [UI React] [BFF Hono] settingsRef [Draft store]
| | | | |
| /settings | GET /api/ | role != 'staff' ? 404 | |
| | settings/all ===>| | |
| | | -------------------------------------------> getSettings()
| | |<---------------------------------------------|
| |<== 200 {settings} =| | |
| | | | |
| sửa 1 field | PUT /api/settings/ | zod theo key: | |
| | :key {value} ====>| draft_ttl_days int > 0 |
| | | raw_text_ttl_days int > 0 |
| | | share_token_ttl_days int > 0 | null |
| | | display_currency 3 chữ |
| | | ! zod fail -> 422 | |
| | | -------------------------------------------> setSetting(key,value)
| | | | upsert, updated_at=now
| | | settingsRef.reload() ---->| |
| | | = mergeSettings( ------------------------> getSettings()
| | | await getSettings())<-----------------|
| |<== 200 {settings} =| | |
| | | | |
| (mọi request khác) --------------> đọc settingsRef.current (không phải bản đã |
| | đóng băng) | |
| | | | |
| GET /api/settings (public, không đổi) ------------------------------------------|The submission row is written before the Odoo call, so a double click still sends once.
States of one reservation (F07 D2)
D1 — Send reservation → folio in Odoo
[Chủ báo giá] [UI React] [BFF Hono] [Odoo]
| | | |
| (đã Save trip, | | |
| revision seq n, | | |
| snapshot có sẵn) | | |
| | | |
| bấm SEND | reservationBlockedReason (thuần, không mạng), thứ tự: |
| RESERVATION | 'sent' hàng sống (pending/confirmed/unknown) -> khoá, |
| | title "Reservation already sent" |
| | 'update' giá chưa khớp trip -> khoá "Update the price first" |
| | 'save' seq = 0 HOẶC !savedIsCurrent (khác plan) -> khoá |
| | "Save the trip first" |
| | 'login' ẩn danh -> nút VẪN bấm được, mở AuthGate tại chỗ |
| | (Q-004), KHÔNG gọi mạng |
| | navigate /trip/:id/reserve | |
| | GET /api/me -------------> name, login -> điền sẵn contact |
| | GET /api/estimates/:id + | |
| | GET /:id/revisions/:seq | (DB mình, 0 Odoo) so JSON workingTrip |
| | ! khác -> "You have unsaved changes…", Confirm khoá (khác plan) |
| | | |
| sửa contact, bấm | cờ inFlight + disabled: | |
| CONFIRM | bấm đúp = một POST | |
| | POST /api/estimates/:id/ | |
| | submit {seq, contact} =>| 1. owner/phiên ubg_auth? không -> |
| | | 401 {reason:'login'}, KHÔNG cookie |
| | | mới, TRƯỚC mọi thứ (khác plan: |
| | | không ensureOwner) |
| | | 2. zod body ! 422 {fields} (chỉ tên |
| | | trường, không giá trị) |
| | | 3. getScenario(id, owner) ! 404 |
| | | 4. latestSnapshot ! 409 'no-snapshot' |
| | | seq !== latest.seq ! 409 'stale' |
| | | 5. cửa: ODOO_SUBMIT_ENABLED=1 HOẶC |
| | | (FIXTURE_MODE=1 VÀ mode fixture) |
| | | ! đóng -> 503 'closed', KHÔNG ghi gì |
| | | 6. createSubmission -> INSERT pending |
| | | TRƯỚC lời gọi Odoo -> (submission) |
| | | ! 'already' (unique index) -> 409 |
| | | {reason:'already', state} |
| | | 7. gateway.submit({contact, |
| | | trip: revision.trip}) |
| | | =======================================>| POST /v1/booking/submit
| | | timeout 20s (ODOO_TIMEOUT_SUBMIT_MS), | header api-key
| | | retries 0, breaker chung với compute | sanitize trip,
| | |<=======================================| tạo folio + draft
| | | {success, folio_id, order_ids} | quotations
| | | 8. markSubmission (chỉ từ 'pending') |
| | | -> 'confirmed' + folio_id/order_ids; |
| | | setScenarioStatus('submitted') |
| |<== 200 {state:'confirmed', | |
| | folioId, orderIds, | |
| | sample, seq} =========| |
| | navigate /trip/:id/booking (cả khi 409 'already' và 502 'unknown') |
| | GET /:id/submission ===>| latestSubmission(id, owner) — không trả |
| | | contact |
| | "Reservation sent · Folio #123" (fixture: "Folio number pending" |
| | + "Sample — no folio was created"), "What happens next…", |
| | Print / PDF, Back to trip |
| | | |
| (mở lại /trip/:id) | đã đăng nhập -> GET /:id/ | |
| | submission (một lần) ==>| đọc hàng mới nhất theo chủ HIỆN TẠI |
| |<== state =================| |
| | banner trên thẻ giá "Reservation sent" + View reservation; |
| | Send khoá theo state |
| | | |
! Odoo trả HTTP lỗi (4xx/5xx, OdooHttpError) hoặc 200 {success:false} -> 'failed' (+error) |
! -> 502 {reason:'rejected', status}; UI "did not accept… Try again" (hàng mới khi bấm lại)|
! breaker mở (BreakerOpenError, KHÔNG có lời gọi nào đi) -> 'failed' (error 'breaker-open') |
! -> 503 {reason:'busy'}, cho bấm lại (khác plan, D-037) |
! timeout / lỗi mạng -> 'unknown' (Odoo CÓ THỂ đã tạo folio) -> 502 {reason:'unknown'} -> |
! Booking "We could not confirm your reservation… do not send it again"; Send khoá vĩnh |
! viễn ở P2, staff xử (B-034, D-039) |
! markSubmission trả null (hàng không còn pending) -> 500 {reason:'unknown'} |
! fixture mode -> fixture twin trả {success:true, folio_id:null, order_ids:null}, sample:true |
! — hình dạng theo spec, không phải hành vi Odoo (B-033, D-038) |D2 — Submission state machine
(none)
|
| ! cửa đóng (503 'closed') -> KHÔNG có hàng, vẫn (none)
|
| POST /submit — INSERT trước khi gọi Odoo
v
+-----------+
| pending | khoá nút Send
+-----------+
/ | \
200 success / | \ timeout / network
+-----------+ | +-----------------+
v | v
+-----------+ | HTTP 4xx/5xx, +-----------+
| confirmed | | success:false, | unknown |
+-----------+ | breaker mở +-----------+
khoá Send v khoá Send
(vĩnh viễn ở +-----------+ (vĩnh viễn ở P2 —
P2; amend | failed | Odoo CÓ THỂ đã tạo
B-035) +-----------+ folio; staff xử
scenario.status KHÔNG khoá Send — B-034)
='submitted' bấm lại -> hàng pending
MỚI, hàng cũ giữ 'failed'D2 (cont.) — Where the data goes on submit
Reserve form {name, email, phone?} ---> POST /submit body.contact (trim; phone rỗng -> null)
| |
| +--> (submission).contact jsonb — PII, không vào log,
| | không vào submission.error, không trả ở GET
| +==> Odoo SubmitRequest.contact
(revision).trip của seq mới nhất --------------> Odoo SubmitRequest.trip (toOdooTrip; không bao giờ
working trip hay trip trong payload)
Odoo {folio_id, order_ids} ------------------> (submission).folio_id / order_ids
-> 200 {folioId, orderIds} -> trang Booking
gateway mode fixture ------------------------> (submission).sample = true -> "Sample — no folio was created"D3 — ERD: the submission table
+---------------------------------------------+
| submission |
|---------------------------------------------|
| id uuid pk default gen_random_uuid() |
| scenario_id uuid not null |
| fk -> scenario.id on delete cascade |----+
| revision_seq int not null | |
| snapshot_id uuid not null fk -> snapshot.id |----+---+
| state text not null check in ( | | |
| pending, confirmed, failed, unknown) | | |
| contact jsonb not null (name,email,phone) | | |
| -- PII, không log dạng thô | | |
| folio_id int null | | |
| order_ids int[] null | | |
| error text null ('HTTP 4xx', 'odoo: | | |
| success=false', 'breaker-open', 'timeout',| | |
| 'network' — không PII) | | |
| sample boolean not null default false | | |
| submitted_by_role text not null | | |
| submitted_by_ref text not null | | |
| created_at timestamptz not null default now | | |
| updated_at timestamptz not null default now | | |
+---------------------------------------------+ | |
v v
+--------------------------+ +--------------------------+
| scenario (đã có, P1) | | revision / snapshot |
|--------------------------| | (đã có, P1/P4) |
| id uuid pk | |--------------------------|
| owner_role / owner_ref | | revision.id, seq, trip |
| status 'draft' | | | snapshot.id, model, role |
| 'submitted' | 'expired'| +--------------------------+
+--------------------------+
Partial unique index:
create unique index submission_one_live on submission (scenario_id)
where state in ('pending','confirmed','unknown')
-- một hàng "sống" mỗi scenario; 'failed' không tính, cho phép hàng retry mới.
-- pg store bắt 23505 trên đúng tên index này -> 'already' (đổi tên là đổi cả hai).
Index đọc: submission_scenario_idx (scenario_id, created_at desc) — latestSubmission.
RLS: bật trên submission, KHÔNG có policy -> chỉ BFF nối bằng DATABASE_URL.Casa quotes today with an internal tool called strategy-lab (five tabs) and the Odoo side's role workflow guide. The old tool prices in the browser and never stores what was quoted; this app takes every number from Odoo and keeps every version.
Key: ✅ built · 🟡 partial · ⬜ not yet · ⛔ Odoo's job. Priority: P1 guest-visible or blocks a demo · P2 makes staff faster · P3 later. Table as of 25 Sep; the workspace tabs in progress will change AV-02.
| ID | Function | In the app today | St. | Depends on | Priority |
|---|---|---|---|---|---|
| TG-01 | Trip form: dates, guest count, divers, dive window, transfer, full board | / Block1Form | ✅ | — | — |
| TG-02 | Guest type follows the signed-in role (no free choice) | "Quoting as …", staff keep the radio | ✅ | — | — |
| TG-03 | Guests table: name, dives, dive days, meals, transfer, room, course, FOC, arrive/depart, comment | /trip/:id GuestsTable | ✅ | — | — |
| TG-04 | "Everyone: full trip dates", "Auto-name guests" | — | ⬜ | — | P3 |
| TG-05 | Pick real rooms (Standard A, B…) free on those dates; full rooms locked; a second guest in the same room shares it | Only rooms of the trip; + Add room by type | 🟡 | GET /v1/estimate/rooms (exists) | P1 |
| TG-06 | Room board: drag guests into rooms, rooms left (2/16 Std…), pax/cap, nightly tier, "Auto-fill rooms" | — | ⬜ | TG-05 | P2 |
| TG-07 | Dive schedule: days × guests, dive/3rd/night | DiveSchedule | ✅ | — | — |
| TG-08 | Dive planner by boat: drag guests onto boats, per-boat cap, "sitting out", "Auto-assign boats", "Copy this day → all days" | Boat select in the cell (hidden when there are no boats) | 🟡 | GET /v1/estimate/boats returns real boats (B-018) | P2 |
| TG-09 | Extra day/night DM per dive day | — | ⬜ | Trip dmByDay / extraDMByDay (Odoo has them) | P2 |
| TG-10 | Van planner: move guests between vans, split cost per van or evenly, pick-up time, cap 6, overload warning | — | ⬜ | Trip vanSplit, vanMeta (Odoo has them) | P2 |
| TG-11 | Add-ons & equipment (nitrox, camera, extra DM…): qty × price, per guest, date range | — | ⬜ | Trip items (Odoo has it, ≤ 50) | P2 |
| TG-12 | FOC: tickable only with 6 guests, "FOC limit reached", auto-untick when lost | FOC checkbox without a limit | 🟡 | model.foc (exists) | P1 |
| TG-13 | Summary line: nights · guests · guest-nights · dive days · van runs · FOC earned/marked | Summary chips (missing guest-nights, van runs, FOC) | 🟡 | — | P3 |
| TG-14 | Validation before pricing (dates, dive window, empty room…) | validateTrip on both ends | ✅ | Q-009..Q-012 | — |
| TG-15 | Trip sheet PDF (guests, rooms, dive days, transfers, add-ons) | — | ⬜ | — | P3 |
| ID | Function | In the app today | St. | Depends on | Priority |
|---|---|---|---|---|---|
| AV-01 | Two columns retail / net per guest | "Agent view" toggle on the quote page | 🟡 | retail_model (present once the agent is verified) | P2 |
| AV-02 | A separate screen on the trip, hidden from instructors and guests | — (currently shown to instructors) | ⬜ | — | P1 |
| AV-03 | 4 tiles: client retail value · net to Casa · agent margin · FOC incentive 5+1 (earned, guests to the next slot) | — | ⬜ | commission field from Odoo (B-012); model.foc | P2 |
| AV-04 | "Copy partner summary" | — | ⬜ | AV-03 | P3 |
| ID | Function | In the app today | St. | Depends on | Priority |
|---|---|---|---|---|---|
| GE-01 | One quote card per guest + group total | /quote/:token Per guest / Group | ✅ | — | — |
| GE-02 | Header: stay, nights, room, group, booked via, prepared, valid until | Only "Version n · priced …" | 🟡 | rates.terms (validDays) | P1 |
| GE-03 | Itinerary written as sentences per guest per day ("Dive day. 2-dive trip on CE1 with 4 other divers…") | One itinerary table for the whole group | 🟡 | dayPlans, vanRuns, presence (exist) | P1 |
| GE-04 | Grouped prices Rooms / Dining / Diving (per day) / Transport, discount lines, "you save vs retail" | Flat price lines from quotes[].lines | 🟡 | Does quotes[].lines carry cat? Check with a real key | P1 |
| GE-05 | Terms: quote validity, 50% deposit, subject to room/boat availability | — | ⬜ | rates.terms (validDays, depositPct) | P1 |
| GE-06 | Pick guest ‹ › / whole group; show or hide prices / discounts | — | ⬜ | — | P3 |
| GE-07 | Copy text / PDF per guest / Export all | Print CSS for the whole page | 🟡 | — | P2 |
| GE-08 | Share link for recipients; the owner gets a Share block | ✅ Share this quote | ✅ | — | — |
| ID | Function | In the app today | St. | Depends on | Priority |
|---|---|---|---|---|---|
| OS-01 | One sheet per day: front desk, housekeeping, dive centre, kitchen, transfers; printable | /ops/:id | ✅ | — | — |
| OS-02 | Handover notes in 3 boxes (front desk / dive / kitchen & bar), saved per trip | — | ⬜ | New column in the store | P2 |
| OS-03 | Front-desk register with flags (courses…) and guest comments | Check-in / check-out only | 🟡 | — | P2 |
| OS-04 | Housekeeping: nights used, peak occupancy / cap | Rooms → guests only | 🟡 | roomNightsUsed, roomPeak (exist) | P2 |
| OS-05 | Dive centre: departures, DMs, tanks to fill, courses needing staff | Groups by boat + counts only | 🟡 | Odoo does not return tanks/DM yet (B-020) | P3 |
| OS-06 | Kitchen: covers per meal (breakfast / lunch / dinner) + who arrives/leaves, peak x/capacity | Covers per day only | 🟡 | covers is per day only — ask the Odoo owner | P3 |
| OS-07 | Ops sheet PDF | Print CSS | 🟡 | — | P3 |
| OS-08 | List of every trip for staff | /ops | ✅ | — | — |
| ID | Function | In the app today | St. | Depends on | Priority |
|---|---|---|---|---|---|
| ST-01 | App settings: draft retention, link expiry, currency | /settings | ✅ | Q-001, Q-003 | — |
| ST-02 | Pricing Setup (room tiers, dive tiers, courses, transport, terms, commission %) | — | ⛔ | Staff edit it in the Odoo UI | — |
| ST-03 | Promotions (5+1, long-stay, early-bird, group dive, bundle) | — | ⛔ | Odoo; staff only, via assumptions | — |
| ST-04 | Scenario / price presets (pick any price list) | — | ⛔ | pricelists + rates/manifest — off-limits for the app | — |
| ST-05 | Profit & Costs, Marketing, Appearance | — | ⬜ | Needs a staff key (only staff see cost); the lead decides if it is needed | P3 |
| ID | Function | In the app today | St. | Depends on | Priority |
|---|---|---|---|---|---|
| UX-01 | Register / sign in / forgot password through Odoo | — | ✅ | — | — |
| UX-02 | My quotes, versions, gated share links | — | ✅ | — | — |
| UX-03 | Send reservation → Reserve → Booking (once, double-click safe) | — | ✅ (fixture; waiting for Odoo to enable) | — | — |
| UX-04 | EN / 中文, day / night | — | ✅ | — | — |
commission in compute (AV-03); confirm the submit endpoint name; covers per meal (OS-06); tanks and DMs per day (OS-05); real boats on staging (TG-08).Anything that is Casa policy is not decided by the app: the question is recorded and the code runs on an interim value that configuration can change.
| # | Question | Interim value | Status |
|---|---|---|---|
| Q-001 | How long are drafts, snapshots and raw text kept? Are sent quotes kept forever? | Drafts 90 days, text 30 days, sent never deleted; a setting | mechanism set, numbers pending |
| Q-002 | Are quote links public or sign-in only? | Guest links public, account links need sign-in | decided |
| Q-003 | Which currency is shown; USD too? | PHP; the setting only changes the label | mechanism set, numbers pending |
| Q-004 | Can an anonymous guest send a reservation? | No, they sign in or register first | interim |
| Q-005 | Does a link show the sent version or always the latest? | Always the latest saved version | pending |
| Q-006 | Can an unverified agent save and share? | Yes, at retail, with Pending verification | pending |
| Q-007 | Can individual guests pick a boat per day? | Yes, once Odoo returns boats | pending |
| Q-008 | Can guests dive on check-in and check-out days? | Interim dive window is the whole stay | pending |
| Q-009 | Is there a zero-night day-use package? | No: at least one night | pending |
| Q-010 | Can guests dive outside their stay? | No: blocked | pending |
| Q-011 | Can a room with no guests be quoted? | Yes, with a warning | pending |
| Q-012 | Can staff enter a trip with a past check-in? | Staff exempt, other roles blocked | pending |
| Q-013 | When an agent books for a client, whose contact goes on it? | The signed-in person, editable | pending |
| Q-014 | Can a link recipient send the reservation? | No, only the quote owner | pending |
| Q-015 | After sending, does the app confirm by email or WhatsApp? | No; the guest sees the Booking page, the front desk sees the folio | pending |
One real send to capture the response and confirm the folio matches the snapshot: P2's "done" criterion.
A staff-role key to see cost and margin and capture a staff fixture.
A commission field in compute so Agent View can show margin and FOC incentive.
Real boats on staging; tanks and DMs per day; covers per meal.
With a verified agent key, does Odoo still read guestType; the exact submit endpoint name.
Add /v1/auth/* and /v1/estimate/boats to the spec; add rates_version.
npm install
cp bff/.env.example bff/.env.local # then set SESSION_SECRET (≥ 32 chars)
npm run dev:app -w bff # app + /api/* on http://localhost:5173, one process
curl http://localhost:5173/api/health # -> {"ok":true,"mode":"fixture"}FIXTURE_MODE=1: the BFF answers with captured Odoo responses, 0 network calls, a Sample data label. Three fixture accounts (guest, agent, staff) exist; see the runbook in the repo.
FIXTURE_MODE=0 plus the Odoo address and the guest service key in bff/.env.local (never committed). Never set ODOO_SUBMIT_ENABLED=1 without the lead and the Odoo side agreeing.
npm run db:start runs Supabase locally. Without DATABASE_URL the RAM store is used and every draft is lost on restart.
| Command | What it does |
|---|---|
| npm run typecheck | tsc for every workspace; green tests with red tsc is not done |
| npm run suite -- p1 | Runs one phase suite: p0..p4, p2, or all |
| npm run test:record -- --suite all --label "…" | Typecheck + suite, appends one row to docs/ledgers/test-log.md |
Latest all run (25 Sep 2026): 801 pass, 0 fail, 39 skipped. Technical detail: /estimator-tech.
| Scenario | Role | What it checks | Steps |
|---|---|---|---|
| A Anonymous Flow A | anonymous | Form without numbers, 1 POST, Outdated with no request, 1 PATCH, Save v1, quote page, open in private tab, Print, Send → Sign in, My quotes, bad token | 16 |
| B Agent sign-in | agent | Wrong password, throttling, "Quoting as Travel agent", draft merge, Pending verification, gated link, non-owner recipient | 13 |
| C Register, forgot password | public | Agent fields, duplicate email, same forgot message, next= never leaves the site | 6 |
| D Console and security | any | HttpOnly cookies, login returns no key, 401 on gated links, reopen is GET only | 5 |
| E Guests, dive grid, itinerary | agent | Add / remove guest, Add room, Course, 3rd / Night, shrink the dive window, 5-day itinerary, two blocking rules | 13 |
| F Ops Sheet and Settings | staff | Non-staff blocked, every trip, 5 daily sheets with no money, Print, currency label only, in-row 422 | 11 |
| G Day theme | any | Switch theme, survives F5, print stays black and white | 6 |
| H Booking | guest with account, agent | Locks on Update / Save, prefilled Reserve, double click = one 200, banner, 409 on resend, link recipient, closed gate 503 | 12 |
